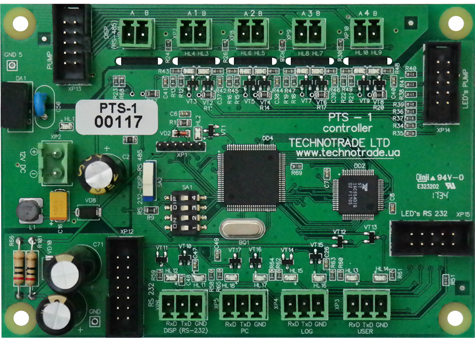

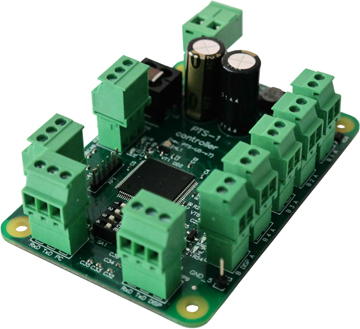

PTS controller over fuel dispensers and ATG systems

Purpose

PTS controller over fuel dispensers and ATG (automatic tank gauge) systems for petrol stations serves as a protocols converter. It knows communication protocols of a great variety of fuel dispensers and ATG probes and allows control over any of them in exactly the same way using its own input communication protocol. POS system (cash register, payment terminal) should not matter what is the brand of fuel dispenser or ATG system connected – it simply communicates to the PTS controller the same way regardless the brand of fuel dispensers and ATG systems used, PTS controller undertakes all work on communication with fuel dispensers and ATG systems using their native communication protocol and takes into account all their peculiarities.

This completely simplifies work for a POS system developer: by having implemented input common communication protocol of PTS controller the POS becomes able to provide control over any of fuel dispensers and ATG systems supported by PTS controller. PTS controller itself converts input communication protocol into proprietary communication protocols of fuel dispensers and ATG systems. Thus the time required for development of POS system for petrol stations is significantly reduced.

fuel pump controller systemClick on image to enlarge

PTS controller can be called a forecourt controller and can be used together with POS systems, cash registers, OPTs (outdoor payment terminals) and other control systems for petrol stations in order to provide control over fuel dispensers, LPG (liquified petroleum gas) dispensers, CNG (compressed natural gas) dispensers and various brands of ATG systems at petrol stations and storage depots.

PTS controller is supplied with a rich set of APIs (application programming interfaces) developed under most popular programming languages and environments in order to provide comfortable and quick implementation of the PTS controller into control systems for petrol stations (POS system, cash register, OPT terminal, etc).


fuel dispenser controller for petrol stations

Fuel pump solutions: forecourt controller

Forecourt controller for gas stations

Forecourt controller manufactures
Click on image to enlarge

PTS fuel pump controller can simultaneously control up to 16 fuel dispenser sides (fueling places). PTS controller has 4 independent pump ports, each of them can be programmed to its own communication protocol and baud rate, thus PTS controller provides communication with connected dispensers simultaneously using up to 4 various communication protocols. Each PTS controller pump port can connect up to 16 fueling places maximum.

PTS controller can simultaneously control up to 16 ATG probes (gauges) (separate probes or probes connected to ATG systems / consoles) that use up to 3 various communication protocols and baud rates (each of the probe ports can be adjusted to a separate communication protocol and baud rate and connect up to 16 ATG probes maximum).

PTS controller allows a possibility to lead management over the same fuel dispensers from several POS systems and share ATG probes measurement values between several interconnected PTS controllers. Thus every interconnected PTS controller is able to provide control over any of the connected fuel dispensers and know ATG system measurement data of every other interconnected PTS controller.

PTS controller supports 90 types of fuel dispensers brands of various manufacturers, between which you can find: Wayne Dresser Europe, Wayne Dresser Brasil, Gilbarco Veeder Root, Tokheim, Nuovo Pignone, Wayne Pignone, Tatsuno Japan, Tatsuno Europe, Tatsuno Rus, Tokico, Bennett, Petrotec, Salzkotten, FAS, Adast, MM Petro ZAP, Emgaz Dragon, Galileo, Kraus, Welma, PEC (Gallagher), Develco, Logitron, Kalvacha, Safe, Wayne Meksan, Mekser, Mepsan, 2A, Petposan, Petrolmeccanica, Batchen, Email, EuroPump, Baransay, Sanki, Korea EnE, LG EnE, SOMO Petro, HongYang, Blue Sky, GreenField, Falcon, Dong Hwa Prime, EPCO, Slavutich, Shelf, UniCon, UniGaz and others.

PTS controller supports more than 25 types of automatic tank gauge (ATG) systems of various manufactures (Gilbarco Veeder Root, OPW, Hectronic, Struna, PetroVend, Start Italiana, Fafnir, Assytech, VEGA, Windbell and others).

PTS controller is CE approved and has all corresponding test reports.

Features and benefits

  • Supports over 70 communication protocols of fuel dispensers and ATG systems. List of supported communication protocols is constantly growing. A wide range of international protocols as Wayne DART, Gilbarco 2-wire, Tokheim, Tatsuno are included. Single firmware of PTS controller contains all available communication protocols for fuel dispensers and ATG systems.
  • Unified approach to management over any forecourt equipment - using PTS controller control over any supported fuel dispenser or ATG system is done in exactly the same way by the management system (POS system, cash register, OPT terminal, etc). PTS controller has a single common communication protocol. Thus having once implemented the protocol into the management system (or its API) the management system will be able to provide control over any of the supported fuel dispensers and ATG systems in exactly the same way.
  • Real-time control over fuel dispensers and ATG systems. PTS controller provides a hardware solution for stable and reliable operation of forecourt equipment.
  • Scalability - PTS controller provides control over up to 16 dispenser sides, in case of necessity several PTS controllers can work simutaneously.
  • Possibility to provide control over same fuel dispensers from several POS systems and receive data on ATG measurements from any interconnected PTS to each POS system - PTS controllers, installed near each of the POS systems, can be interconnected with each other allowing each of the POS systems to provide control over each of the connected fuel dispensers or monitor its state and to have data measurements of ATG systems connected to any of the interconnected PTS controllers.
  • Rich set of interface converters for connection to fuel dispensers - PTS controller has output pump ports in RS-485 interface so can be directly connected to fuel dispensers with this type of interface. Other dispensers having communication interface of 2-wire current loop, 3-wire current loop, 4-wire current loop, RS-232 interface are connected to PTS controller through special interface converters.
  • Rich software API for developers - PTS controller is supplied with full API (application programming interfaces) and open-source test applications for common programming languages and operation platforms: C, C++, C#, Delphi, Java, Python, Visual Basic, COM-object.
  • "All in one" configuration tool for PTS controller: one configuration utility provides configuration of its pump and probe ports, internal parameters, reads version, makes firmware updates, captures logging from any channel and makes self-diagnostics of the PTS controller.
  • Easy firmware updating - All new firmware updates are available for download to all existing customers. Firmware update process takes about 1 minute. Easy way to back up and restore PTS controller configuration between updates.
  • Logging of operation - in order to remove problematic situations of PTS controller communication with any forecourt equipment logging of communication exchange without interrupting PTS controller operation is available, which allows quick search and elimination of any found problems.
  • Self-diagnostics of operation - easy and quick built-in diagnostics of PTS controller operation: CPU, memory, RS-232 and RS-485 interfaces, DIP-switches.
  • Constant software updates - PTS controller firmware is constantly being improved, new protocols are being added and latest updates are always available for download to all customers.
  • Support by developers for developers - 24 hours support for all customers of PTS controller on any standing issues.
  • Credit-card size and suits to any dimension for installation inside master systems.

Technical characteristics

PARAMETER VALUE
Power supply voltage 12 V DC
Current consumption 400 mA max
Temperature range from -40°C to +80°C
Weight 120 g
Overall dimensions 120 x 85 x 20 mm

SUPPORTED COMMUNICATION PROTOCOLS


Fuel dispensers communication protocols

Baud rate is configured for each pump port in PTS controller independently on the used communication protocol.

Some dispensers may demand using interface converter boards to RS-485 interface (depends on electronics of used pumphead in dispenser).

##FUEL DISPENSER BRANDPROTOCOL NAME
12A S4-Dart
2ACTRONIC PEC Pump Communication Protocol
3ADAST (ADAMOV SYSTEMS) Adast EasyCall
4AG WALKER SPDC-1,
MPDC-1
5AGIRA PEC Pump Communication Protocol,
PumpControl,
Develco
6ANGI International Gilbarco Two-Wire
7ARIEL PumpControl
8ASPRO PumpControl,
Develco,
Coritec
9
ASSYTECH Dart
10
ASTRON TiT UniPump
11
AZT AZS 2.0
12
BARANSAY Gilbarco Two-Wire
13BATCHEN Gilbarco Electroline,
Gilbarco MPP,
PumpControl,
Maser,
PEC Pump Communication Protocol
14BENNETT Bennett pump dispenser protocol (current loop),
Bennett pump dispenser protocol (RS-485 Fleet),
Bennett pump dispenser protocol (RS-485 Retail)
15BLUE SKY Blue Sky 6-6-4 protocol,
Blue Sky 8-8-6 protocol,
LT protocol,
LY protocol,
JP protocol
16CENSTAR Censtar protocol
17CFT Clean Fuel Gilbarco Two-Wire
18COMPAC PEC Pump Communication Protocol,
Gilbarco Australia
19CORITEC Coritec
20
DATIAN MACHINES WS 16 communication protocol
21
DEVELCO Develco
22
DONG HWA PRIME Prime pump interface
23EAGLESTAR Eaglestar
24EMGAZ DRAGON Marconi PumaLAN
25EPCO Epco protocol specification
26EUROPUMP S4-Dart
27FALCON LPG Falcon
28FORNOVO GAS Marconi PumaLAN
29FUELQUIP PEC Pump Communication Protocol
30
FUELSIS S4-Dart
31
GALILEO PumpControl
32
GERKON TiT UniPump
33
GILBARCO Gilbarco Two-Wire,
Extended Two-Wire Appendix
34
GREENFIELD Gilbarco Two-wire
35HITACHI SS-LAN protocol
36HONG YANG HongYang FZ-protocol,
HongYang 886 communication protocol,
HongYang 886 MPD communication protocol
37IMW PumpControl,
Tokheim UDC
38INTERMECH PEC Pump Communication Protocol
39KALVACHA Kalvacha
40
KIEVNIIGAZ TIT UniGaz
41
KOREA ENE EnE Dispenser POS protocol
42
KPG-2 TIT UniGaz
43
KRAUS MNET design specification,
Gilbarco Two-wire
44
KWANGSHIN KS-NET PROTOCOL
45
LANFENG RS–232 protocol,
RS–485 protocol,
SS-LAN protocol
46LG ENE EnE Dispenser POS protocol
47LOGITRON Marconi PumaLAN
48MASER Maser,
Gilbarco Two-wire
49MEKSAN / WAYNE SU86 Wayne Dart
50
MEKSER S4-Dart
51
MEPSAN S4-Dart
52
MIDCO Midco Proprietary Pump Protocol
53
MM PETRO (ZAP) MM PETRO ZAP RS-485
54
MOTOGAZ PumpControl
55
MS GAS SK protocol
56
NARA AZT 2.0
57
NUOVA MIGAS Dart
58
NUOVO PIGNONE Nuovo Pignone RS-485,
Nuovo Pignone Current Loop 4-wire,
Wayne Dart
59
PEC (GALLAGHER FUEL SYSTEMS) PEC Pump Communication Protocol,
Gilbarco Australia
60
PETPOSAN S4-Dart
61PETROEQUIP Lanfeng protocol
62
PETROMECCANICA Wayne Dart
63
PETROTEC Petrotec HDX protocol
64
PROWALCO SPDC-1 / MPDC-1,
SPDC-2 / MPDC-2,
Salesmaker & ICON
65
PUMP CONTROL PumpControl
66
REAL-TECH Blue Sky,
SS-LAN
67
RIX PEC Pump Communication Protocol
68
SAFE Safe PMII Graf,
PumpControl
69
SALZKOTTEN ER3-Data interface,
Gilbarco Two-Wire,
Marconi Logitron PumaLAN
70
SANKI Sanki common communication protocol,
Sanki communication protocol for CIS countries
71
SEA BIRD Blue Sky
72
SHELF Shelf
73
SCHEIDT & BACHMANN V11
74
SHIBATA SS-LAN
75
SLAVUTICH Slavutich FD-Link
76
SOMO PETRO POS protocol
77
STAR HongYang 886 communication protocol,
HongYang 886 MPD communication protocol
78
TATSUNO (JAPAN) Tatsuno SS-LAN,
Extended Digits Number protocol
79
TATSUNO EUROPE (FORMER BENC) Tatsuno Benc PDE,
Logitron PumaLAN
80
TEKSER Wayne Dart,
Wayne US Current Loop
81
TOKHEIM Tokheim Controller-Dispenser Communication protocol,
Logitron PumaLAN
82
TOKICO Tokico SS-LAN
83
TOMINAGA Tominaga SS-LAN
84
TOPAZ TOPAZ Electro,
Iskra ver. 1.72
85
TRANSPONDER PEC Pump Communication Protocol
86
UCAR ELEKTRIC S4-Dart
87
UNICON-TIT TIT UniPump
88
VANZETTI Logitron PumaLAN
89
WAYNE DRESSER Wayne Dart,
Wayne US Current Loop
90
WAYNE PIGNONE Wayne Dart
91
YENEN S4-Dart,
Maser
92
ZCHENG GENUINE MACHINES Zcheng communication protocol

Automatic tank gauge (ATG) systems communication protocols:

Communication parameters (baud rate, parity control, data and stop bits) are configured for each probe port in PTS controller independently on the used communication protocol.

##ATG SYSTEM BRANDPROTOCOL NAME
1ACCU PD-300 Communication Protocol
2ASSYTECH Assytech
3
DUT-E DUT-E COM protocol
4
EBW Gilbarco Veeder Root
5
ENRAF Enraf Height protocol,
Enraf Volume protocol
6
FAFNIR Fafnir VISY-Quick,
Gilbarco Veeder Root
7
FRANKLIN FUELING Gilbarco Veeder Root
8
GAMICOS GLT622 console communication protocol
9
GILBARCO Veeder Root (TLS-2, TLS-300, TLS-350, TLS-450) Gilbarco Veeder Root
10
HECTRONIC Hectronic HLS
11
HUMANENTEC 520S Communication Protocol
12INCON Gilbarco Veeder Root
13LABKO Labkotec POS interface protocol
14MTS ATG SENSORS MTS USTD
15OMNICOMM DUT-E COM protocol
16OMNTEC Gilbarco Veeder Root
17OPW Gilbarco Veeder Root
18PETRO VEND PETROVEND4
19QINGDAO GUIHE Gilbarco Veeder Root,
Qingdao Guihe MODBUS RTU
20
START ITALIANA Start Italiana SMT/XMT,
Gilbarco Veeder Root
21
STRUNA Struna Kedr spec. 1.4
22
UNIPROBE Uniprobe
23VEGA Vega ASCII protocol
24WINDBELL Windbell smart-probe communication protocol

 NEED MORE PROTOCOLS?

 We are constantly expanding a list of supported communication protocols and forecourt equipment.

 Please contact us if you are interested in other pumps or probes brands, communication protocols or control equipment not listed here.



CONNECTION TO FUEL DISPENSERS


PTS controller can simultaneously control up to 16 fuel dispenser sides (fueling places). PTS controller has 4 independent pump ports and each of them can be programmed to its own communication protocol and baud rate, thus PTS controller provides communication with connected dispensers, simultaneously using up to 4 various communication protocols. Each PTS controller pump port can connect up to 16 fueling places maximum.

Pumps (fuel dispensers) connection scheme




CONNECTION TO ATG SYSTEMS


PTS controller can simultaneously control up to 16 ATG probes (gauges) (separate probes or probes connected to ATG systems / consoles) that use up to 3 various communication protocols and baud rates (each of the probe ports can be adjusted to a separate communication protocol and baud rate and connect up to 16 ATG probes maximum).

ATG systems (probes, gauges) connection scheme

MULTI POS SYSTEMS OPERATION


PTS controller allows a possibility to lead management over the same fuel dispensers from several POS systems and share ATG probes measurement values between several interconnected PTS controllers. Thus every interconnected PTS controller is able to provide control over any of the connected fuel dispensers and know ATG system measurement data of every other interconnected PTS controller.

If a necessity arises to organize several working places at petrol station (several POS systems) each of the POS systems should have its own PTS controller connected. PTS controllers should be interconnected with each other through a dispatcher PTS port (DISP channel on RS-485 interface) and with fuel dispensers. Thus control over each fuel dispenser at petrol station can be made from every POS system and each PTS controller will know measurement data of every ATG probe connected to any of the interconnected PTS controllers. During authorization of a fuel dispenser from one POS system the fuel dispenser becomes locked by PTS controller of this POS system and while it is locked all other POS systems cannot control given fuel dispenser, they can only monitor its current state. When operation of given POS system is finished with given fuel dispenser, PTS controller of this POS system unlocks the fuel dispenser and it becomes commonly available to all other PTS controllers, which makes it possible to be controlled (locked) by any of the PTS controllers connected to other POS systems.


PTS CONTROLLER CONFIGURATION UTILITY


PTS controller pump port configuration
PTS controller firmware update PTS controller log capturing PTS controller diagnostics
Click on image to enlarge


PTS controller configuration utility is an open source application, which provides the following operations with PTS controller:

  1. Configuration of pump port and probe port of PTS controller
  2. Configuration of pump protocol, ATG, and PTS controller parameters
  3. Provision of control over the pumps and monitoring measurement values of ATG systems like real POS system
  4. Saving of all PTS controller configuration to file and restoring of all configuration from file
  5. Updating of PTS controller firmware
  6. Logging of PTS controller communication on selected channel
  7. Self-diagnostics of PTS controller:CPU, memory, RS-232 and RS-485 interfaces, DIP-switches
  8. Reading of current PTS controller firmware version: display of firmware date, number and supported communication protocols
  9. Direct connection of PTS to POS system or connection through fiscal module: possibility to configure PTS controller via direct connection of PTS controller to POS or connection through fiscal module
  10. Multilanguage support: easy addition of new languages to the utility, all languages are stored in XML-file, which is easy to edit


PTS controller configuration and testing utility
(online video)

DEVELOPERS' API, SOURCE CODES AND EXAMPLES


PTS controller for developers is supplied together with a rich set of API (application programming interfaces) for commonly used programming languages and operation platforms:

  • C and C++ - API for communication with a PTS controller through a COM-port, documentation and examples of application in source codes under Windows OS and Linux operating systems

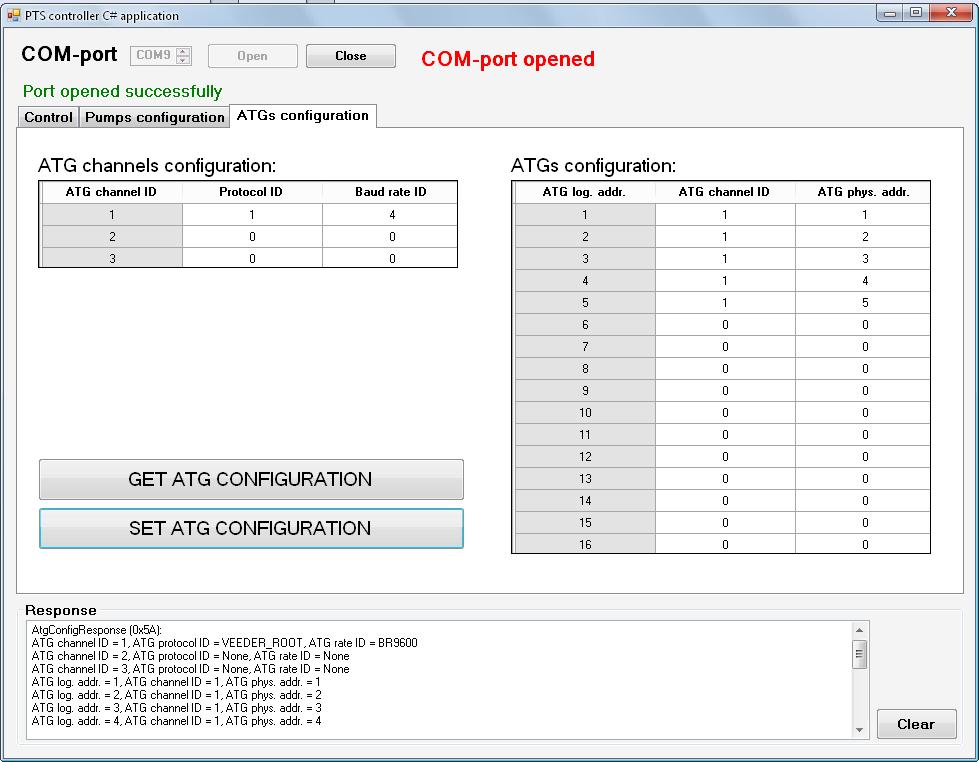

  • C#:
    • open source library, which includes classes, methods and properties for communication with PTS controller for provision of control over dispensers and ATG systems and configuration of PTS controller
    • open source PTS controller configuration and testing utility
    • open-source utility for testing and indication of all operations provided by the PTS controller, allows to perform all operations with the PTS controller

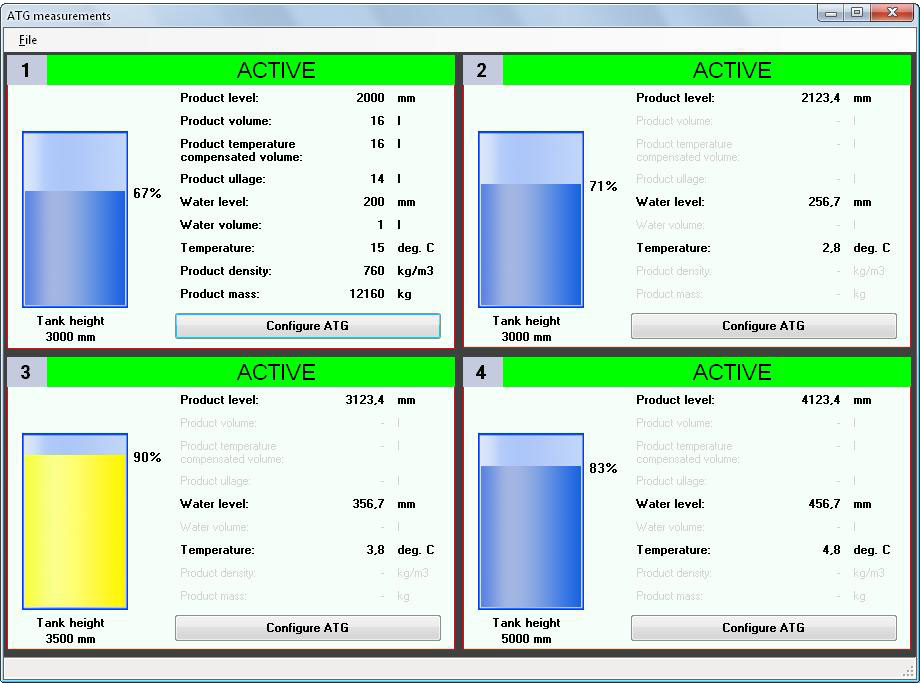

    • open source fully-functional application for provision of control over up to 8 pumps and 4 ATG systems by the PTS controller, allows to perform all operations with the PTS controller
  • Delphi - API for communication with a PTS controller through a COM-port, documentation and examples of application in source codes

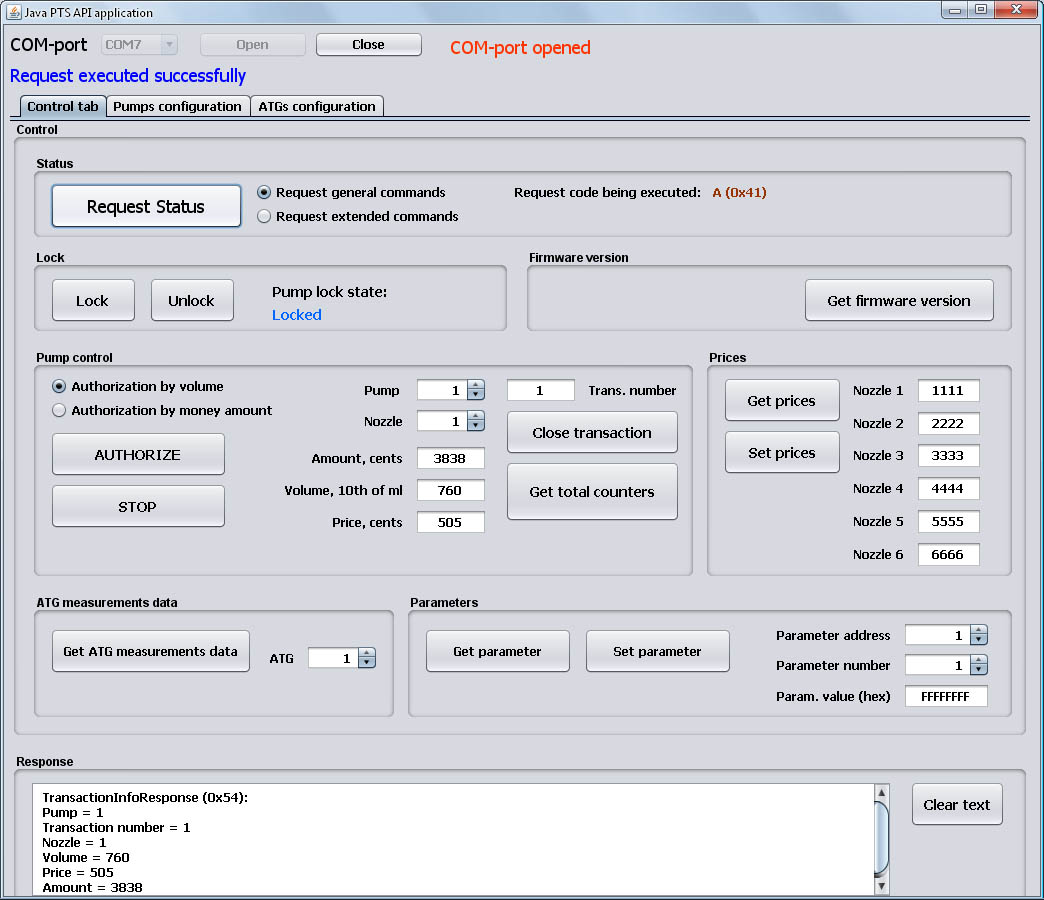

  • Java:
    • open source library, which includes classes, methods and properties for communication with PTS controller for provision of control over dispensers and ATG systems and configuration of PTS controller
    • open-source utility for testing and indication of all operations provided by the PTS controller, allows to perform all operations with the PTS controller
  • Python - API for communication with a PTS controller through a COM-port, documentation and examples of application in source codes
  • Visual Basic .NET:
    • open source library, which includes classes, methods and properties for communication with PTS controller for provision of control over dispensers and ATG systems and configuration of PTS controller
    • open source PTS controller configuration and testing utility
    • open-source utility for testing and indication of all operations provided by the PTS controller, allows to perform all operations with the PTS controller
    • open source fully-functional application for provision of control over up to 8 pumps and 4 ATG systems by the PTS controller, allows to perform all operations with the PTS controller
  • COM-object for PTS controller:
    • open-source COM-object (written in Microsoft Visual C++ 6.0 IDE in C++ programming language) with methods and properties for communication with PTS controller for provision of control over dispensers and ATG systems and configuration of PTS controller
    • open-source application in Microsoft Visual Basic 6.0 for testing and indication of all operations provided by the PTS controller, allows to perform all operations with the PTS controller
  • Description of communication protocol of PTS controller - describes communication parameters, message structure, commands and responses between POS management system and PTS controller, typical flowchart and a diagram of interaction

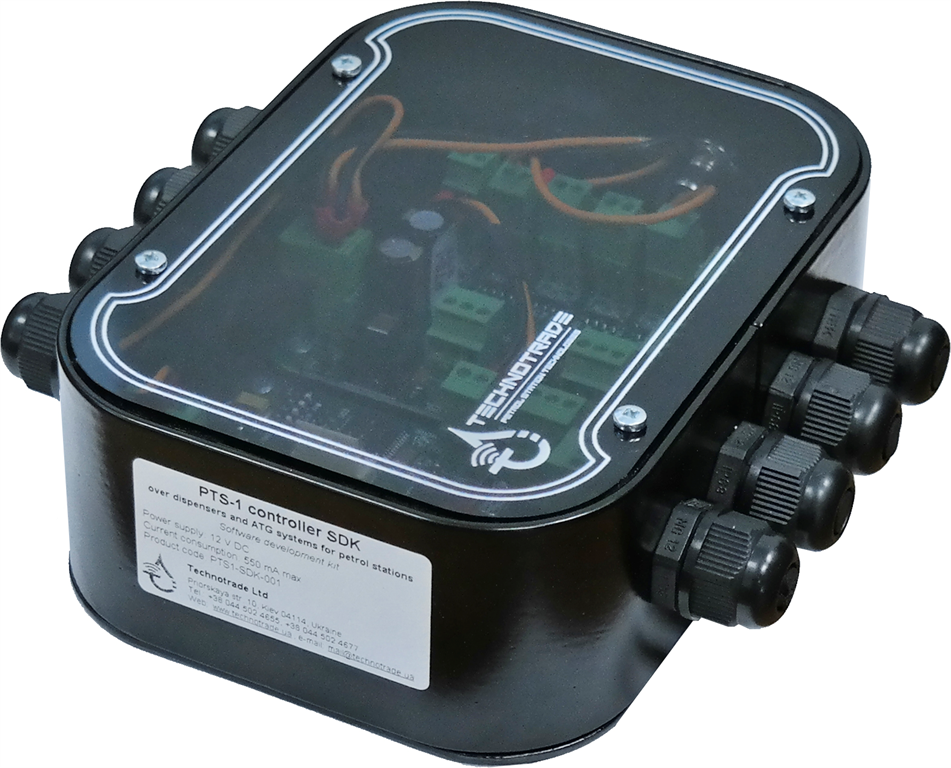

PTS CONTROLLER SDK (Software Development Kit)


PTS controller SDK (Software Development Kit) is intended for developers of POS management software for petrol stations that want to control fuel dispensers and ATG systems from their software.

PTS controller software development kit
Click on image to enlarge

PTS controller SDK includes:

HARDWARE:

  1. PTS controller over fuel dispensers and ATG systems for petrol stations - 1 pcs
  2. Interface converter RS-485 / RS-232 - 1 pcs
  3. Cabling

SOFTWARE:

  1. Software simulators of prevalent fuel dispensers
  2. Software simulators of ATG systems (probes)
  3. API for developers in various programming languages:
    • C and C++
    • C#
    • COM-object
    • Delphi
    • Java
    • Python
    • Visual Basic 6.0
    • Visual Basic .NET
    • Description of communication protocol with PTS controller
  4. "All in one" configuration utility for configuration, firmware update, logging and diagnostics of the PTS controller
  5. PumpDemo - free contracted version of NaftaPOS software for petrol stations
  6. Useful utilities for debugging of communication with PTS controller

PTS fuel pump controller Click on the scheme to enlarge



PTS controller SDK hardware connections
(online video)



PTS controller SDK software configuration
(online video)

SCREEN SHOTS OF SOFTWARE OF PTS CONTROLLER SDK:

Fuel dispenser SDK PTS controller SDK PTS controller SDK
Open source fully-functional application for petrol stations in C# language and also in VB.NET language (click on image to enlarge)
Fuel dispenser SDK PTS controller SDK PTS controller SDK
Open-source utility for testing and indication of all operations provided by the PTS controller in C# language and also in VB.NET language (click on image to enlarge)
Fuel dispenser SDK PTS controller SDK PTS controller SDK
Open-source utility for testing and indication of all operations provided by the PTS controller in Java language (compiled in NetBeans IDE) (click on image to enlarge)
Fuel dispenser SDK PTS controller SDK PTS controller SDK
Open-source utility for testing and indication of all operations provided by the PTS controller on the basis of COM-object, application written in VB6.0 language (click on image to enlarge)
Fuel dispenser SDK
Open source utility for testing control over pumps and ATG systems provided by the PTS cotroller in Delphi 7 (click on image to enlarge)
Fuel dispenser SDK
Open source utility for testing control over pumps and ATG systems provided by the PTS cotroller in Python (click on image to enlarge)
Fuel dispenser SDK PTS controller SDK
PumpDemo - free contracted version of NaftaPOS software for petrol stations (click on image to enlarge)
Fuel dispenser SDK
PTS Terminal - tool for debugging communication with PTS controller (click on image to enlarge)
Fuel dispenser SDK PTS controller SDK
Pumps software simulator (click on image to enlarge)
Fuel dispenser SDK
ATG systems software simulator (click on image to enlarge)

PTS CONTROLLER SDK IS REQUIRED AND DESIGNED FOR SOFTWARE DEVELOPERS TO:

  1. Improve understanding of operating the PTS controller.
  2. Implement the PTS controller into own developed POS management system or software application for control over fuel dispensers and ATG level measurement systems for petrol stations.
  3. Debug own software application to correctly provide control over fuel dispensers and probes locally (on the workplace) without need to connect to real fuel dispensers and probes using software simulators of pumps and probes supplied in structure of SDK.


FIRMWARE UPDATES


PTS controller firmware is constantly being improved and new communication protocols are added. New versions of PTS controller firmware are available for download to customers.


SUPPORT


Support team provides 24 hour help and customer assistance on any questions which may arise with PTS controller. Questions are answered by experienced developers and programmers, who have sufficient knowledge and can assist with any questions regarding software development.


ORDER INFORMATION


PTS controller PCB   PTS PCB board with terminal blocks
Order code: PTS-U5-PCB-001
PTS controller box (RS-232 interface)   PTS controller box (RS-232 input interface)
Order code: PTS-U5-BOX-001
PTS SDK   PTS Software Development Kit (SDK)
Order code: PTS-SDK-001
USB to COM interface converter (2 channels)   USB to RS-232 interface converter (2-channels)
Order code: USB-COM-001


 Downloads


FREQUENTLY ASKED QUESTIONS


1. What are the installation requirements for the petrol station?



WARNING! Manufacturer guarantees reliable and stable operation of products only at compliance with below requirements. In case of absence of uninterruptible power supply or incorrect wiring of products to it any claims to malfunction of software are not accepted.


1. Requirements to power supply

The described products come into structure of control system (POS) for petrol station. Power supply of the products should be done from a separate power supply with built-in filter of radio frequency interferences and limiter of high voltage pulse interferences. Power supply should have a safety factor of 1.5.

At emergency switching off the power supply or in case of power voltage exceeding its permitted ranges the products can switch off with loss or corruption of data and possible damage of hardware and software. Power supply of all electronic blocks of POS and electronic pumpheads of dispensers, which are connected through information lines, should be made from single common uninterruptible power supply source (UPS). Connection of other devices to given UPS is strictly prohibited. UPS should be of continuous action (online) and work with double conversion with output voltage regulation. UPS should have a safety factor of 1.5. Filter of radio frequency interferences and limiter of high voltage pulse interferences should be used for feeding equipment from UPS.

Supply of electronic pumpheads of dispensers should be made from the UPS unit using 3-wires scheme with isolated neutral through dedicated two-pole breaker for each dispenser. Connection of other parts of dispenser to UPS unit (expect electronic pumpheads) is strictly prohibited.

UPS unit should be connected to a separate three-pole socket fed through the three-wire feeder (phase, neutral, ground wires) with insulated neutral from a dedicated circuit breaker of switchboard. Feeder coming from the switchboard to the socket should located not closer than 0.3 meters to other feeders. The socket should be located at a distance of not more than 1 meter away from the POS. Phase wire of the feeder should not have any other consumer, which are sources of interferences (for example motors).

For protection of POS and UPS from secondary effects of atmospheric electricity it is required to install high-voltage arresters (dischargers) at the transformer substation or on poles of power lines.


2. Requirements to grounding

In the switchboard the ground wire of feeder socket should be connected to the grounding screw, which should be connected by means of welding with a protection grounding circuit of petrol station by steel wire with a diameter of not less than 5 mm.

Protection grounding circuit of petrol station should correspond to safety requirements and be separated from the station lightning protection circuit. Distance from the nearest electrode of protection grounding circuit to electrode of lightning protection circuit must be at least 10 meters. Resistance of the protection grounding circuit should be not more than 4 Ohms and must be confirmed by the test report. Length of wires from the switchboard to the nearest electrode of protection grounding circuit should not exceed 15 meters.


3. Requirements to laying of cable communications

Laying of power and information wires to dispensers should be done in separate pipes with distance of not less than 0.3 meters between each other. For informational wires (current loops, RS-485, other interfaces) it is recommended to use shielded twisted-pair cables (recommended type – FTP CAT 5E). The cable shield must be connected to the ground connector on one side only – on the side of the dispenser.


Wiring connections diagramClick on image to enlarge


2. What does the PTS controller allow for the control system?

PTS controller serves as a protocols converter. It allows conversion of proprietary dispensers and ATG systems communication protocols to a single communication protocol of PTS controller, which is called UniPump. Thus using a single communication protocol UniPump a control system (POS system, cash register, payment terminal) is able to provide control over any of the supported dispensers and ATG systems in exactly the same way. A work for a developer of the control system is completely simplified - he does not need to implement a great variety of the communication protocols in the control system (which are difficult to get from manufacturers and difficult to implement), he needs to implement only UniPump protocol of PTS controller and PTS controller will undertake conversion of UniPump protocol to propritary communication protocols of dispensers and ATG systems. Thus time required for development of the control system is sufficiently reduced.

PTS controller has now more than 45 protocols of dispensers implemented and more than 15 protocols of the ATG systems implemented.

PTS controller supports more than 60 types of dispensers of various manufacturers, between which you can find: Wayne Dresser Europe, Wayne Dresser Brasil, Gilbarco Veeder Root, Tokheim, Nuovo Pignone, Wayne Pignone, Tatsuno Japan, Tatsuno Europe, Tatsuno Rus, Tokico, Bennett, Petrotec, Salzkotten, FAS, Adast, MM Petro ZAP, Emgaz Dragon, Galileo, Kraus, Welma, Kraus, PEC (Gallagher), Develco, Logitron, Kalvacha, Safe, Wayne Meksan, Mekser, Mepsan, 2A, Petposan, Kraus, Petrolmeccanica, Batchen, Email, EuroPump, Baransay, Sanki, Korea EnE, LG EnE, SOMO Petro, HongYang, Blue Sky, GreenField, Falcon, Dong Hwa Prime, EPCO, Slavutich, Shelf, UniCon, UniGaz and others.

PTS controller supports various types of automatic tank gauge (ATG) systems of various manufactures (Gilbarco Veeder Root, OPW, Hectronic, Struna, PetroVend, Start Italiana, Fafnir, Assytech and others).

PTS controller firmware is constantly being updated and new protocols are added. New specific protocols can be added upon request.

PTS forecourt controller for petrol stations
Click on image to enlarge

3. What is a list of currently supported fuel dispensers and is it possible to add other fuel dispensers to this list?

List of currently supported dispensers and ATG systems can be found on this link.

PTS controller firmware is constantly being updated and new protocols are added. New specific protocols can be added upon request.

4. How many dispensers can PTS controller provide control over?

PTS controller can simultaneously control up to 16 fuel dispenser sides (fueling places). PTS controller has 4 independent pump channels, which of them can be programmed to its own communication protocol and baud rate, thus PTS controller provides communication with connected dispensers simultaneously using up to 4 various communication protocols. Each PTS controller pump channel can connect up to 16 fueling places maximum.

Sp, you can connect all the maximum 16 pumps to the same pump channel or you can distribute all the 16 pumps between the any or all pump channels. As the pump channels are working independently from each other it is recommended to distribute the connected dispensers between all the pump channels in approximately equal quantities.


Pumps (fuel dispensers) connection scheme

5. What wires are used for connection of the PTS controller with dispensers? Are the wires supplied together with the PTS controller?

PTS controller is supplied without cables for connection to dispensers and ATG systems. For connection to dispensers and ATG systems you will have to prepare the cablings yourself. You can use any standard FTP cable with twisted pair and aliminium foil for screening (like FTP CAT 5E) for connection.

When PTS controller is to be connected directly to ATG probes installed in fuel tanks (without ATG console) - then connection should be obligatory done through the safe barriers (intrinsic safety barriers), which prevent any sparks coming from the cable in explosion dangerous area of tanks, where the ATG probes are installed.

6. If there are totally 4 pump ports in PTS controller - does it mean that only 4 pumps can be connected to it?

Total quantity of pumps to be connected to PTS controller is 16. You can connect all the maximum 16 pumps to the same pump channel or you can distribute all the 16 pumps between the any or all pump channels. As the pump channels are working independently from each other it is recommended to distribute the connected dispensers between all the pump channels in approximately equal quantities.

Under pump we mean a fueling place, which is a dispenser side (in case if dispenser has 2 sides) or a whole dispenser (in case if dispenser has 1 side).

7. What is the difference between the pump and fuel dispenser?

Under pump we mean a fueling place, which is a dispenser side (in case if dispenser has 2 sides) or a whole dispenser (in case if dispenser has 1 side).

8. Where is the PTS controller installed: near the POS or inside the fuel dispenser?

The PTS controller has RS-232 interface for communication with a control system (e.g. POS system, cash register, payment terminal, etc). RS-232 interface specification allows connection with maximum distance up to 15 meters between devices using this interface. It means that the PTS controller should be used close to the control system. Interfaces normally used in dispensers allow much longer distances for communication (for example RS-485 or current loop interface normally allows distances up to 1200 meters for communication).

9. How are the fuel dispensers connected to the PTS controller: directly or through an interface converter?

This depends on the type of interface used in the dispensers.

Dispensers, which use RS-485 interface, are directly connected to the PTS controller. Examples of such dispensers are: Wayne Dresser Europe, Nuovo Pignone, Wayne Pignone, Tatsuno Japan, Tatsuno Europe, Tatsuno Rus, Tokico, Bennett, Adast, MM Petro ZAP, Galileo, Develco, Safe, Wayne Meksan, Mekser, Mepsan, 2A, Petrolmeccanica, EuroPump, Sanki, Korea EnE, LG EnE, SOMO Petro, Blue Sky, Dong Hwa Prime, EPCO, Slavutich, Shelf, UniCon, UniGaz, others.

Electronic dispensers, which use 2-wire current loop interface are connected to the PTS controller through the GB interface converter. Examples of such dispensers are: Gilbarco, Tankanlagen Salzkotten, Batchen Email, Kraus, Prowalco, Wayne Dresser (USCL communication protocol), PetroTec, EuroPump, Mekser, Meksan, Petposan, PEC (Gallagher Fuel Systems), Bennett, Falcon LPG, Greenfield, others.

Electronic dispensers, which use 3-wire passive current loop interface are connected to the PTS controller through the TH interface converter. Examples of such dispensers are: Tokheim, Satam, Emgaz Dragon, Kalvacha, others.

Electronic dispensers, which use 3-wire active current loop interface are connected to the PTS controller through the LP interface converter. Examples of such dispensers are: Logitron, Emgaz Dragon, Gilbarco Marconi, others.

Electronic dispensers, which use 4-wire active current loop interface are connected to the PTS controller through the HY interface converter. Examples of such dispensers is Hong Yang, others.

Electronic dispensers, which use 4-wire active current loop interface are connected to the PTS controller through the NP interface converter. Examples of such dispensers is Nuovo Pignone, others.

Electronic dispensers, which use RS-232 interface are connected to the PTS controller through the RS-485/RS-232 interface converter. Examples of such dispensers is Lanfeng, others.

Mechanical dispensers, which do not have electronic pumphead or interface for communication, can be connected to the PTS controller through the use RS-232 interface are connected to the PTS controller through the controller over mechanical fuel dispensers. Controller over mechanical fuel dispensers is intended to be used in connection with a control system for petrol station (POS system, cash register, OPT terminal, etc) to provide direct control over operation of electronic and mechanical fuel dispensers by controlling dispenser’s internal resources: motor, pulse sensor, nozzle, slowdown valve.

10. Is there any difference in provision of control over diferent fuel dispensers brands through the PTS controller?

PTS controller converts a proprietary dispensers and ATG systems communication protocols into a single communication protocol, which is called UniPump. Thus using a single communication protocol UniPump a control system (POS system, cash register, payment terminal) is able to provide control over any of the supported dispensers and ATG systems in exactly the same way. For a developer it does not matter which brand or model of the dispenser or a POS system is connected - control over it through the PTS controller is done in exactly the same way.

11. Is it possible to arrange wireless communication with fuel dispensers and how?

Yes, wireless communication with the dispensers is possible to arrange. For this our wireless communication device (WCD) should be used.

WCD is used as a wireless alternative to wired lines and is installed to replace the cables (between external devices) with radio communication. WCD is designed to transmit / receive data via radio channel at a speed of up to 9600 bit / s in the frequency range (2410-2465) MHz with the transmitter output power up to 10 mW.

WCD is connected to an external device via communication interface RS-232 or RS-485 (2-wire or 4-wire) and is "transparent" for the devices (additional modification of the device is not required).

Wireless communication device for petrol stations
Click on the scheme to enlarge

12. How to power supply the PTS controller? Is the power supply source supplied together with PTS controller?

PTS controller uses 12 V DC for feeding. Maximum current consumption is 200 mA.

Power supply source is not supplied together with a PTS controller. The power supply should be selected locally. This is connected with a reason that differennt countries may have different electricity network specifics: frequency and voltage.

At selection of the power supply you need to pay attention to the following 2 factors:

  • output voltage of power supply should be 12 V DC
  • maximum allowed current consumption of power supply should be more that maximum current consumption of PTS controller. If several devices are connected to the same power suource - then their total current consumption should be less than maximum allowed current consumption of power supply.

13. How to connect PTS controller to personal computer and what to do if there is no COM-port?

Connection of PTS controller to the control system (POS system, cash register, OPT terminal, etc) is made through a PC port of PTS controller, which has RS-232 interface (3 wires: TxD, RxD, Gnd).

PTS controller

In case if the control system does not have a COM-port – it is possible to use any type of converter to COM-port (like USB-to-COM, Ethernet-to-COM, Bluetooth-to-COM, other converters).

NOTE! Some of the proposed USB-to-COM converter cables can bring problems when communicating with PTS controller. Reason of these problems is that since PTS controller uses quite high baud rate for communication (57600 baud), so some USB-to-COM interface converter an "eat" some of the transferred bytes in the communication exchange, so that the transferred messages will be incorrect and communication will be stopped or made incorrectly. That is why it is recommended to use USB-to-COM interface converters on the basis of FTDI chip (www.ftdichip.com), these converters are tested to have stable and correct communication with the PTS controller. Normally the COM-port adjustments window for this USB-to-COM interface converter looks as follows (screenshot is made in Russian language version of Windows OS):

USB to COM interface converter

Also a double-channel USB-to-COM interface converter on the basis of FTDI chip can be ordered directly from us, please see the product order code "USB-to-COM interface converter (2-channels)" here

Communication with PTS controller is made using commands and responses described in UniPump communication protocol. Thus PTS controller provides conversion of the common communication protocol UniPump into various proprietary communication protocols of fuel dispensers and ATG systems.

14. Is it possible to use PTS controller in order just to listen to the dispenser to collect data on sales and not to provide control over it?

Yes, this is possible and PTS controller works on many petrol stations in exactly such a way.

This way of operation requires a control system to keep constant track over the dispenser state. Once the nozzle is taken up - the control system should authorize it with some volume, which is bigger than normal dispensing volume. After the dispensing is done - the control system should read transaction information from PTS controller and store its in its memory. As an example of such mode of operation please read how this is done in NaftaPOS software.

15. What is a set of instructions PTS controller allows to make with fuel dispensers and ATG systems?

Communication with PTS controller is made using commands and responses described in UniPump communication protocol. Thus PTS controller provides conversion of the common communication protocol UniPump into various proprietary communication protocols of fuel dispensers and ATG systems. The set of instructions includes commands:

  • Request status
  • Authorize
  • Suspend/resume dispensing
  • Stop
  • Get transaction information
  • Get total counters
  • Set/get prices
  • Get ATG measurement data

16. What API is available for development of own POS system on the basis of PTS controller?

PTS controller is supplied with full API (application programming interfaces) and open-source test applications for mostly used programming languages and operation platforms: C (for Windows and Linux OS), C++, C#, Delphi, Java, Python, Visual Basic, COM-object.

17. Are there any open source applications supplied together with PTS controller SDK and what is their license?

Yes, for each of the popular programming language we supply API and an open source applications for provision of control over dispensers and getting data from ATG systems. All software is given for free. You can use these application as a startup for your own POS system appilications and/or modify their source code to what is required by you.

PTS CONTROLLER CONFIGURATION AND TESTING UTILITY ONLINE VIDEO



PTS controller configuration and testing utility
(online video)


PTS controller SDK (software development kit) online video



PTS controller SDK hardware connections
(online video)



PTS controller SDK software configuration
(online video)

  Ask YOUR questions about
"PTS controller over fuel dispensers and ATG systems"


CAPTCHA
Reload imageSound image


Result is successfull! Result is error!
Loading  Message is being sent... Please wait.
Write directly to us on: mail@technotrade.ua.
We will gladly answer all of your questions!


Other products of section:


GB dispenser interface converter   GB dispenser interface converter
GB 2-wire interface converters (RS-485/RS-232 to 2-wire current loop and backwards) are intended for communication with dispensers (Gilbarco, Tankanlagen Salzkotten, Batchen Email, Kraus, Prowalco, Bennett and others) using 2-wire current loop interface through interfaces RS-232, RS-485 (2 wires).
TH dispenser interface converter   TH dispenser interface converter
TH 3-wire interface converters (RS-485/RS-232 to 3-wire current loop and backwards) are intended for communication with dispensers (Tokheim, Satam, Emgaz Dragon, Kalvacha, Kraus, others) using 3-wire current loop interface through interfaces RS-232, RS-485 (2 wires).
HY dispenser interface converter   HY dispenser interface converter
HY 4-wire interface converters (RS-485/RS-232 to 4-wire current loop and backwards) are intended for communication with dispensers (HongYang, Star) using 4-wire current loop interface through interfaces RS-232, RS-485 (2 wires).
NP dispenser interface converter   NP dispenser interface converter
NP 4-wire interface converters (RS-485/RS-232 to 4-wire current loop and backwards) are intended for communication with dispensers Nuovo Pignone using 4-wire current loop interface through interfaces RS-232, RS-485 (2 wires).
LP dispenser interface converter   LP dispenser interface converter
LP 3-wire interface converter (RS-485/RS-232 to 3-wire current loop and backwards) is intended for communication with fuel dispensers ( Logitron, Emgaz Dragon, Gilbarco Marconi, Fornovo LPG, others), which use 3-wire current loop interface, through interfaces RS-232, RS-485 (half-duplex).
NZ dispenser interface converter   NZ dispenser interface converter
NZ 2-wire interface converters (RS-485/RS-232 to 2-wire current loop and backwards) are intended for communication with dispensers (Actronic, Agira, Batchen, Compac, Intermech, PEC (Gallagher Fuel Systems), others) using 2-wire current loop interface through interfaces RS-232, RS-485 (2 wires).
NA dispenser interface converter   NA dispenser interface converter
Dispenser interface converter NA (RS-485/RS-232 to non-addressable RS-422/RS-485/RS-232 and backwards) are intended for communication with fuel dispensers Censtar, which do not have a communication address in communication protocol and use one of the following interfaces (RS-422, RS-232, RS-485).
RS-485 to RS-232 dispenser interface converter   RS-485 to RS-232 dispenser interface converter
RS-485 to RS-232 dispenser interface converter (RS-485 to RS-232 interface and backwards) is used for communication with fuel dispensers, which use RS-232 interface, through interfaces RS-232, RS-485 (half-duplex).
Wireless interface converter RFC   Wireless interface converter RFC
RFC converter is appointed for establishing of wireless communication between devices having interfaces RS-232 and RS-485.
Controller over mechanical fuel dispensers   Controller over mechanical fuel dispensers
Mechanical fuel dispenser controller is used in conjunction with a control system for petrol station to provide direct control over operation of electronic and mechanical fuel dispensers by controlling dispenser’s internal resources: motor, pulse sensor, nozzle, slowdown valve.
USB to RS-232 interface converter   USB to RS-232 interface converter
USB to RS-232 interface converter is intended for conversion from USB interface (USB 1.1, USB 2.0) into two independent RS-232 interfaces in duplex and half-duplex modes of data exchange.
RS-232 to RS-485 interface converter   RS-232 to RS-485 interface converter
RS-232 to RS-485 interface converter (RS-232 to RS-485 and backwards) is intended for conversion of signals from RS-232 interface to signals of RS-485 interface and backwards. Converter contains 2 separate independent conversion channels.

Back to top
