LED information boards and creeping lines

• Creeping line uses graphic information for display, therefore at text input any font and language installed in Windows OS can be used, any font-size can be used, creeping line can display images.
• Memory for more than 4 million pixels (for a font size 8*8 pixels in a symbol - more than 65.500 symbols).
• Creeping lines are manufactured for outdoor and indoor application.
• Creeping lines for outdoor application have a function of automatic brightness adjustment depending on external luminescence.
• Control over a creeping line is made through an interface cable (length to 1 kilometer) or using a radiomodem from distance up to 300m.
• Colors of luminescence ........... red, yellow, blue, green, white.
• Brightness of pixels................. 1,5 – 3,0 cd
• Angle of view..........................110°
• Power consumption from 1 module:
  - MP10....................... not more than 15W
  - MP15....................... not more than 30W

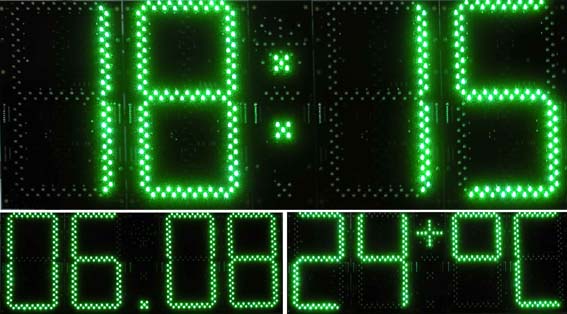

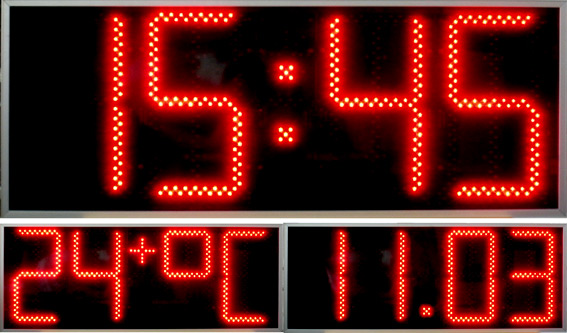

• Electronic clocks sequentially displays current time, date and temperature of air.
• Electronic clocks can be united in the single time system.
• Electronic clocks are manufactured in two variants: for outdoor and indoor application.
• Electronic clocks for outdoor application have a function of automatic brightness adjustment depending on external luminescence.
• Electronic clocks provide automatic switching to summer/winter time, account of leap-years.
• Time setting is performed using a remote IR-panel and/or buttons on the case.
• Colors of luminescence........... red, yellow, blue, green, white.
• Brightness of pixels................. 1,5 – 3,0 cd
• Angle of view..........................110°

Price Board for Fuel Filling Stations

Price boards are manufactured in two variants: for outdoor and indoor application. Price boards for outdoor application have a function of automatic brightness adjustment depending on external luminescence.. Changing of information on a price boards is made through an interface cable (length to 1 kilometer), using a radiomodem from distance up to 300m, from a remote IR-panel or using buttons on the case. Protection from dust and moisture. Upon request price boards can be made two-sided with any quantity of rows. Upon request price boards can be equipped with creeping lines and/or electronic clocks. Colors of luminescence........... red, yellow, blue, green, white. Brightness of pixels................. 1,5 – 3,0 cd Angle of view..........................110°

Structure: Indicating module for a price-board (2 or 3 rows of LEDs) Controller for a price-board (for 4 / 8 / 12 modules) Clamp box RS-485 interface for connection with PC Radiomodem for connection with PC 1 point Protective glass for the indicating module Device of protection against overrating voltage

Indicating modules for price board can be delivered separately

Indicating module with 3 rows of LEDs (Click to enlarge picture)

Indicating module with 2 rows of LEDs (Click to enlarge picture)

Lightdynamic Signboard

Dynamic spectrum of a rainbow Exploitation conditions............... From-40° up to +50° Power supplies......................... 220V/50Hz

The block system of manufacturing allows producing the price board and the light-emitting diode signboard practically of any sizes

  Installation, guarantees, service and technical support
